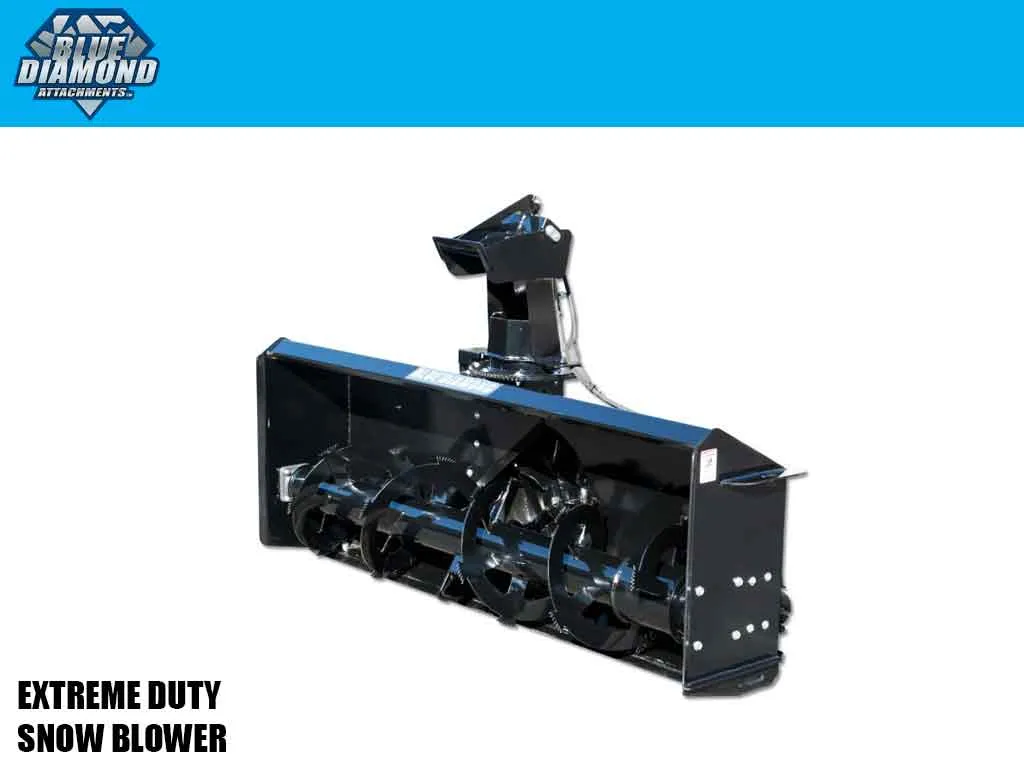

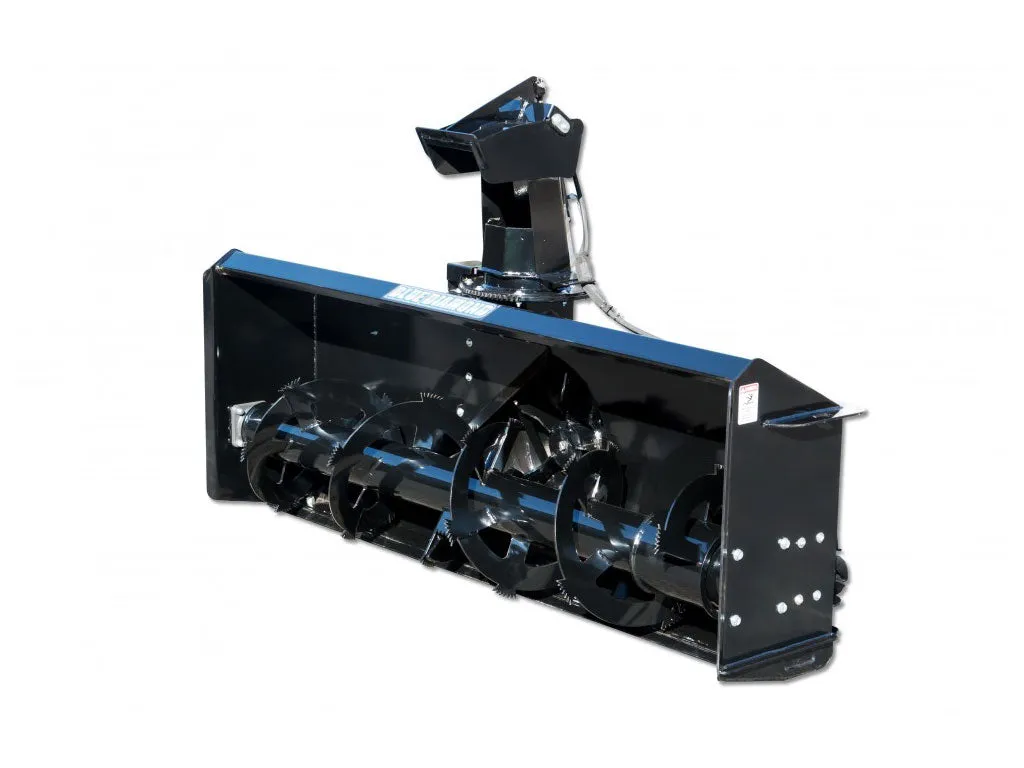

SNOW BLOWER – EXTREME DUTY

The Blue Diamond Skid Steer Snow Blower is engineered for years of use. A high pressure bypass relief system eliminates the need for shear pins during sudden stops. With a choice of widths and motor packages, you can find the optimal sized snow blower to match your skid steer or compact track loader’s capacity.

FEATURES:

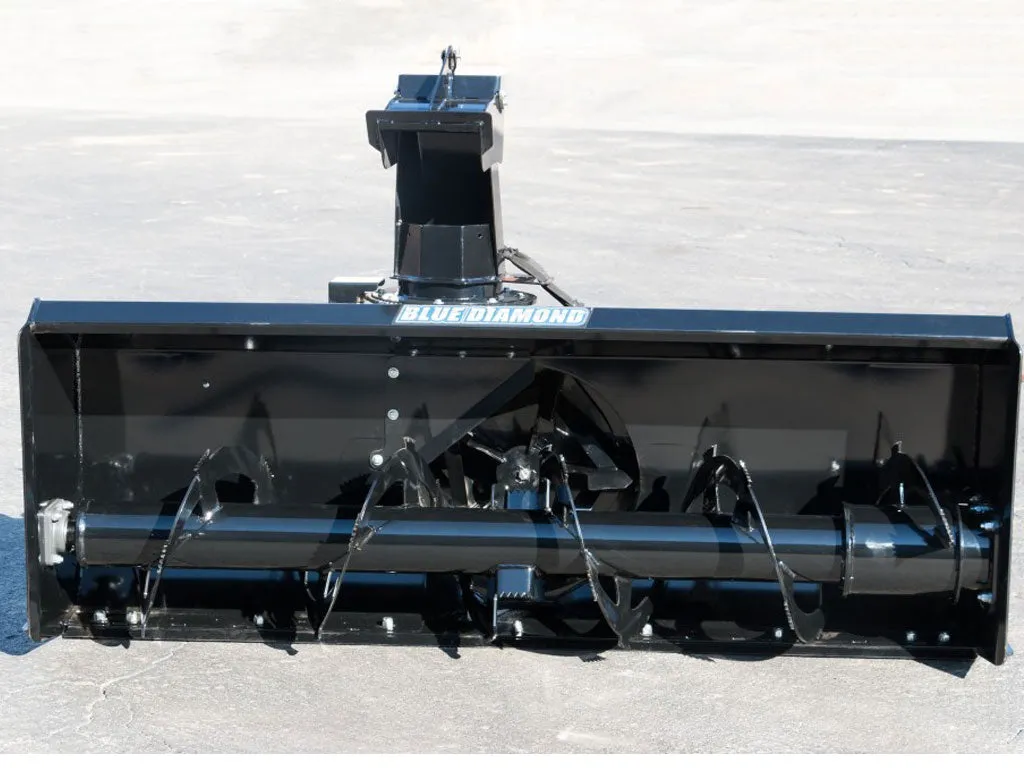

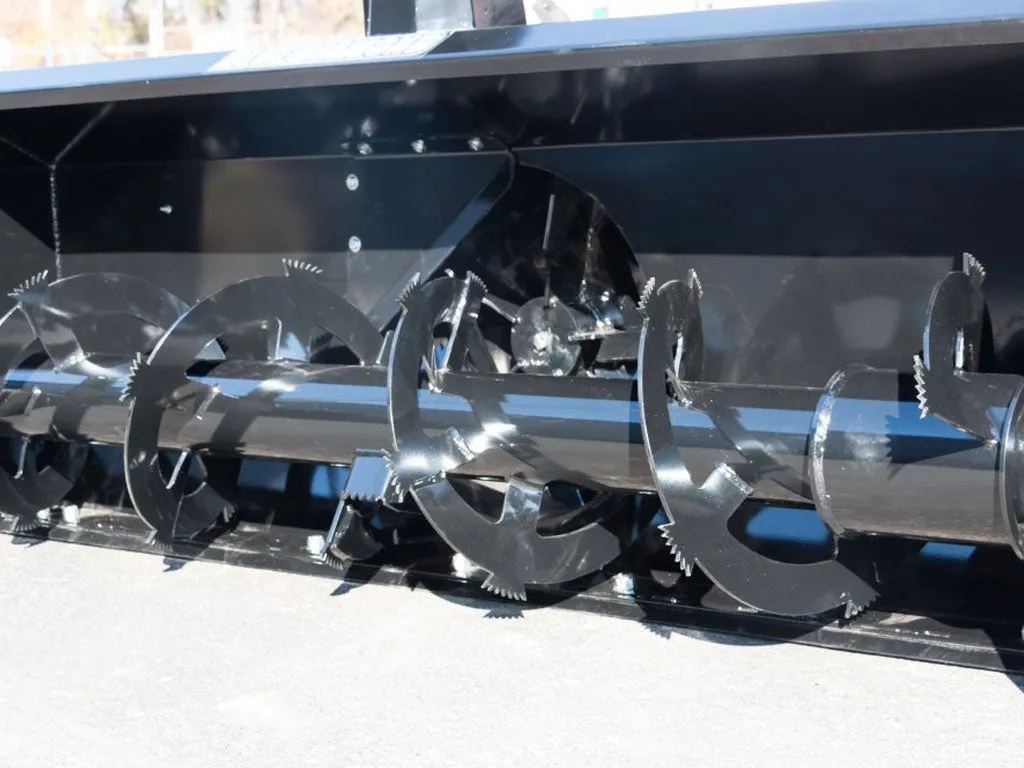

Aggressive toothed 16″ auger with 2 ¼ x ¼” ribbon flighting

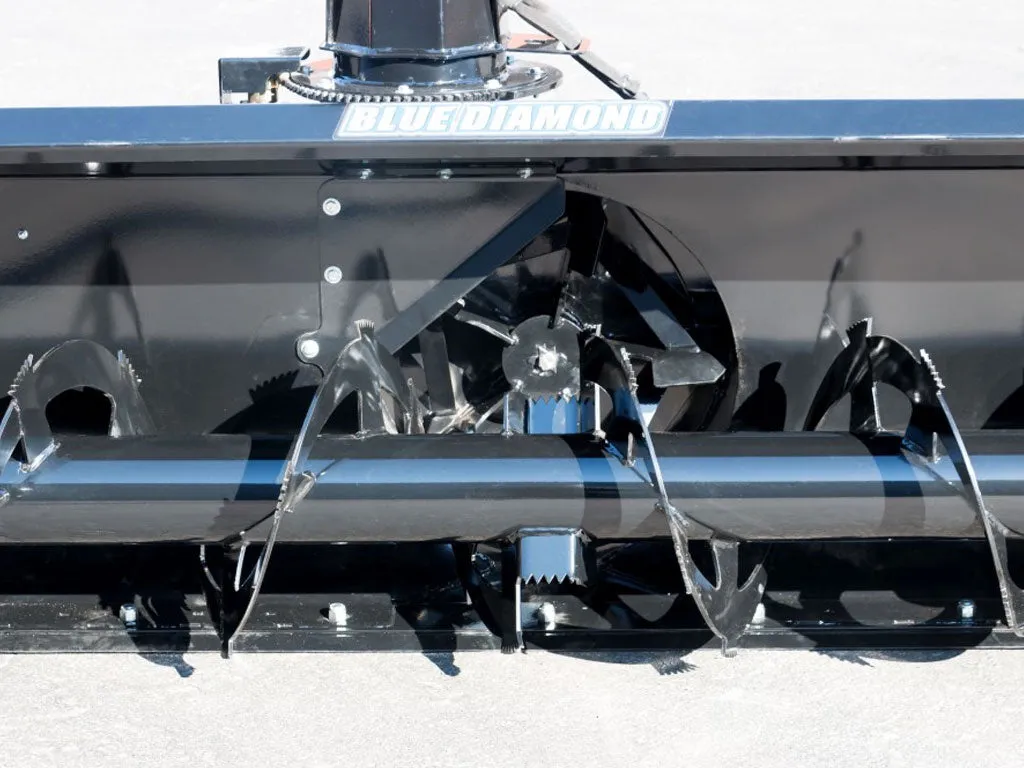

5 blade fan, 22″ diameter, 6 1/2″ deep

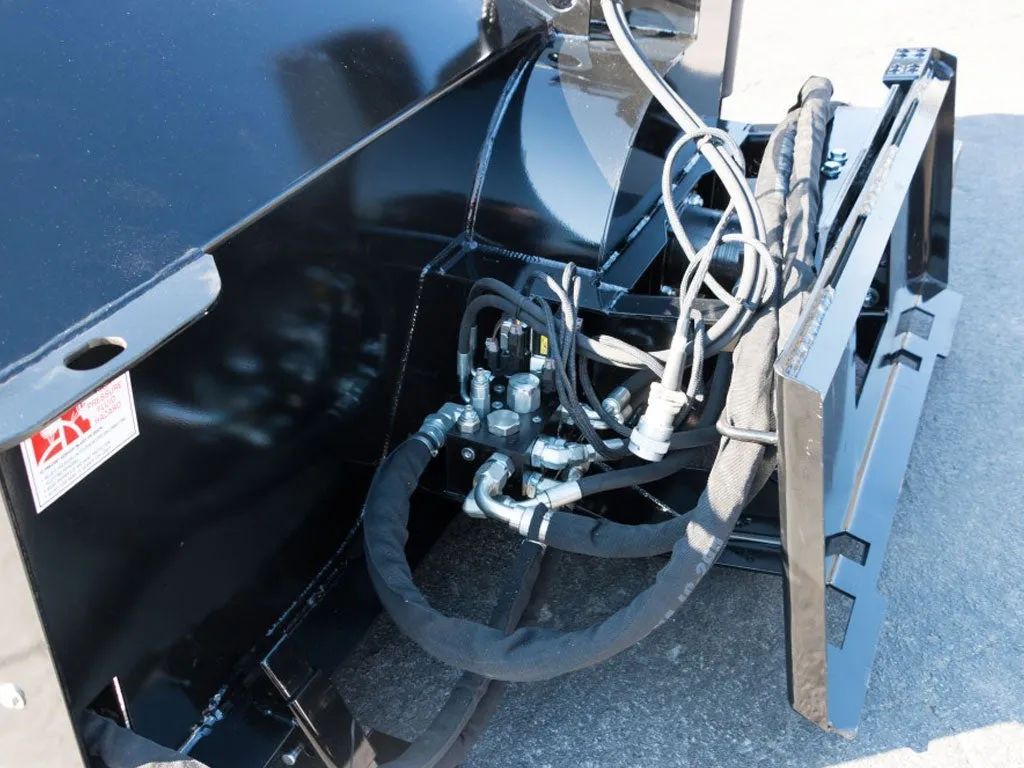

No shear pins; high pressure bypass relief system
No chains; direct drive auger and fan

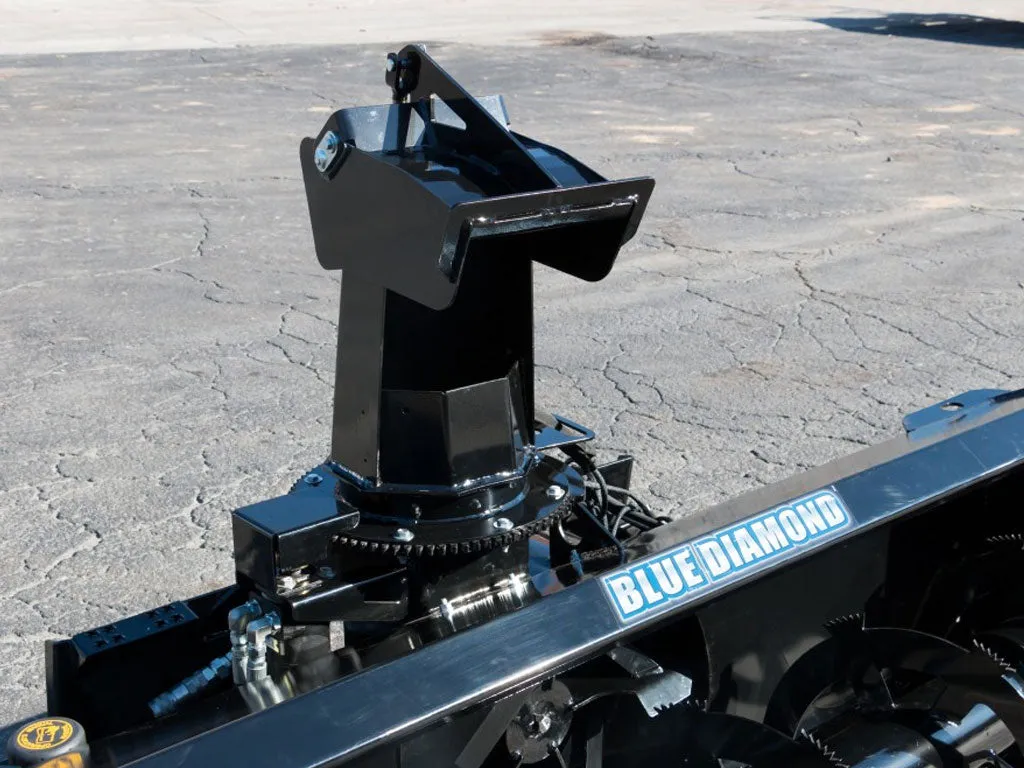

270^◦ hydraulic rotary chute with 7” opening
Hydraulic chute deflector
Adjustable hardened steel skid shoes
7 gauge steel fan housing
10 gauge steel blower shell
1/4″ end plates
High strength corner bracing
Heavy-duty polyurethane idler wheels
Bolt-on grader cutting edge

SPECIFICATIONS

Model	Flow Range	Cut Width	Cut Height	Overall Width	Overall Height	Weight
68″	11-16 GPM	69.7″	29.5″	73.5″	60.5″	915 lbs.
68″	17-20 GPM	69.7″	29.5″	73.5″	60.5″	915 lbs.
68″	21-23 GPM	69.7″	29.5″	73.5″	60.5″	915 lbs.
72″	17-20 GPM	73.7″	29.5″	77.5″	60.5″	950 lbs.
72″	21-23 GPM	73.7″	29.5″	77.5″	60.5″	950 lbs.
72″	24-25 GPM	73.7″	29.5″	77.5″	60.5″	950 lbs.
72"	26-29 GPM	73.7"	29.5"	77.5"	60.5"	1046 lbs.
72″	30-40 GPM	73.7″	29.5″	77.5″	60.5″	950 lbs.
84"	21-23 GPM	85.7"	29.5"	89.5"	60.5"	1110 lbs.
84″	24-25 GPM	85.7″	29.5″	89.5″	60.5″	1050 lbs.
84″	26-29 GPM	85.7″	29.5″	89.5″	60.5″	1050 lbs.
84″	30-40 GPM	85.7″	29.5″	89.5″	60.5″	1050 lbs.
